Columns Map
Feed Columns allows you to map any column to any product attributes, or to directives implementing special logic meant to follow marketplace specifications.
Please check with the marketplace feed specifications to understand what the feed columns should be.

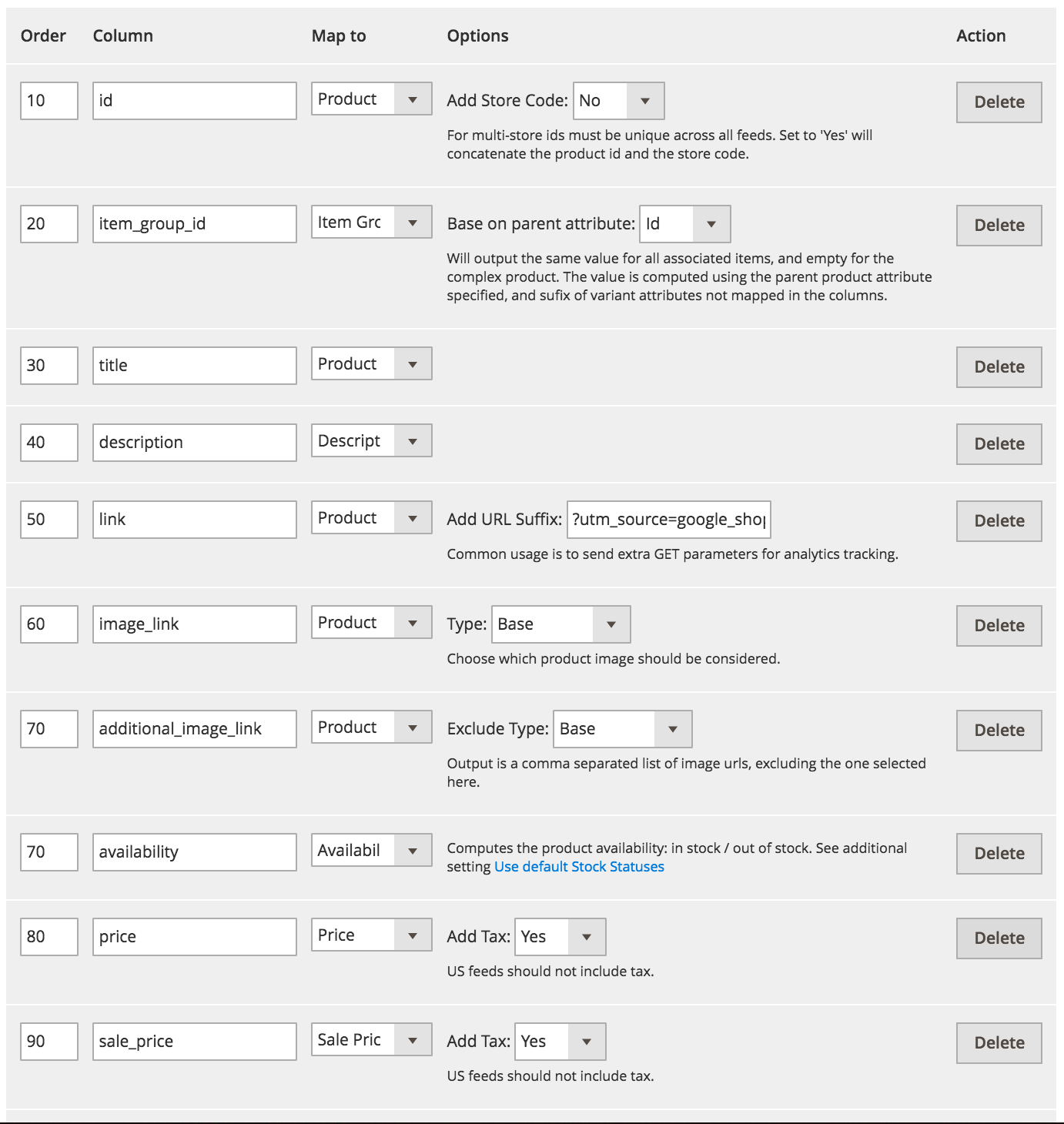

The Column Map grid features the following:
- Order - allows you to define the columns order in the feed. Higher numbers go last.
- Feed Column - is the name of the column.
- Map To - can be either Directive (first options in the dropdown), or a product Attribute.
- Options - some Directives accept parameters that can be specified here.
Generally, it is recommended to associate directives (the first grouping in the dropdowns) to corresponding columns. Column names must be exactly as specified by marketplace provider.
When feed is added, depending on the marketplace feed type, a set of columns will be added by default. You can change and add more columns as you see fit, to better match your catalog data onto merchant feed specifications.
Save Page !
11.1 Columns Map
Product Image URL
Simply pulls the product's main image URL. Allows the option to set under the Type parameter, which images is the main image, by default it's set to Base Image.
If your product does not have an image assigned as the Base Image, your product may be skipped if "image_link" is under "Skip product with empty". If you notice problems, try removing it from skip rule.
Product Category Image URL
Returns category image of the first category assignment found for your product. This should only be used for special cases where product images are defined on the category level.
Product Additional Images URLs
This directive outputs a comma separated list of active image URLs for the product. Under the Exclude Type parameter should be set to the main image of the product, so that only the rest of images are added through this directive.
Price
The price directive aims to match the price displayed on the product page, so it takes into account currency conversions, tax, promotions, MSRP and eco tax. Configurable, bundle and grouped items will have the minimal price of an item. Setting Add Tax option below to Yes will add tax to this price column, for US all prices should not include tax, the appropriate setting should be made here. The price output includes the currency information.
Msrp price is used in this directive when the product has msrp enabled and that value is bigger than the price itself, forcing Sale Price directive to display the regular price.
For products that have qty increments active, it will multiply the amount with the minimum number of items to purchase.
Tier Price
This directive allows you to output price for a specific customer group which is configured in the directive options at the column map. It uses the same format as regular Price directive, and it does not include other price computations like Price directive does.
Sale Price
This directive will output the lowest value for which the product can be purchased at. It computes the Special Price of the product, and any catalog promotion rules according to the Apply Catalog Price Rules setting from General Configuration section. Setting Add Tax option below to Yes will add tax to this price column, for US all prices should not include tax, the appropriate setting should be made here.
When Msrp is enabled, the value of regular price is used here if there are no running promotions at a lower value. Similar to Price directive it takes into account the qty_increments set for the product.
Sale Price Date Range
The date interval is taken primarily from the product's Start / End dates of the special price. This interval will never output empty, so when no end date is specified for the product, the range will be set for a full year. If the start date is not specified on the product, the current processing date is considered.
This date range is mostly useful in the feed along with the Sale Price, specifying when this sale apply.
Availability
Uses regular magento stock information to compute whether a product is on stock or not. When the additional setting Use default Stock Statuses is set to No, a custom attribute specified under Alternate Stock/AvailabilityAttribute, will be used to specify the availability. See more settings under General Configuration section.
Accepted values for this directive are: 'in stock', 'out of stock', and 'preorder'. Other values will be replaced by 'out of stock'.
Inventory Count
Simply pulls the stock inventory qty information. The Count Mode defines how the qty count should be performed in case of complex products like bundle.
Product Expiration in Feed
Computes an expiration date based on product creation and the "No. of Days" option below. Set "No. of Days" option to increase or decrease this date limit.
Shipping
This directive computes shipping information into accepted format, based on the shipping methods available for your products. To use this directive, Shipping section has to be configured on your feed. To specify which Shipping Methods and which regions will be considered please review Shipping section.
Shipping Weight
Outputs the weight attribute of your products along with the unit of measure specified here under options. For bundle products, there's an extra setting called Combined weight found under the Bundle Products section
Variant Attributes (Apparels)
Allows for using multiple product attributes to specify a different value systems for the same property. It comes handy to map apparel specific properties.
Example of size property:
- shirts - shirt_size attribute, with values: Small, Large, X-Large, etc
- shoes - shoe_size attribute, with values: 8, 9, 10, etc
Using this directive you can select both attributes, and when processing the product, the appropriate value will be considered depending on whether a value is specified in one of the attributes. First attribute found having a value for the product is been used.
For configurable items, all values will be computed into a list of values delimited by comma, or a delimiter specified under Associated Product Attribute Value Separator setting under Configurable products section of the config.
Product Option
This directive is used to output values of product custom options. This directive is used for apparel catalogs which hold the color and size variations as custom options instead of having those properties as configurable products items. It takes as argument the list of custom options names which should hold the values needed for the column you're setting up.
Each custom option in the argument has the number of products affected in the right (x).
The output of this directive also depends on how the Product Options section is configured, and it can be a list of possible values as comma separated, or it can be a single value in case the products is set to detail each options combination as separate row in the feed.
Adwords Price Buckets
This directive uses a set of rules defined under Adwords Price Buckets settings to output labels for different price ranges of your products. A common usage is to add the google custom_label_0 column which is handy to group your products when running AdWords Shopping Campaigns.
To specify the upper limit of your prices, just use some big number like 99999999. See below example image.

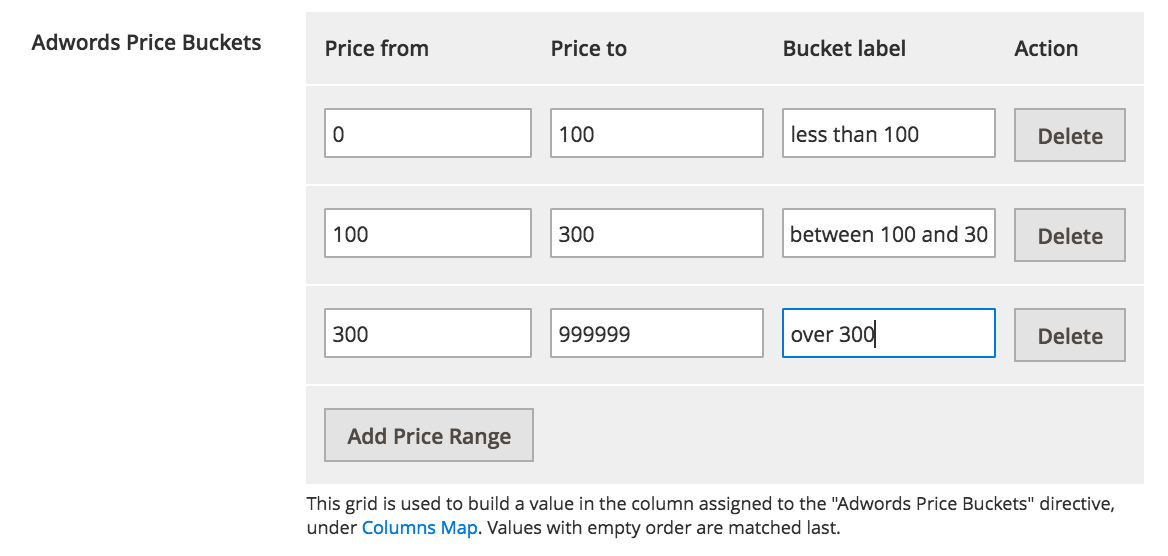

Fig 11.2 Adwords Price buckets
Product Review Average
Output product's average rating in the interval 1 - 5. Returns 0 if no reviews have been approved on your product
Product Review Count
Outputs the count of product reviews. Returns 0 if no reviews have been approved on your product.
Type by Magento Category Path
This method is the default way of filling a categorised column of your products that can be used to fill product_type.
Your product category paths are converted into a string revealing the hierarchy like: Root > Categ A > Categ B. Product been assigned to Categ B. All product categories will be used to build a list of comma separated paths, and they are limited to the Paths limit value.
Deeper categories are listed first, so that when the limit is set the most relevant ones are revealed.
Taxonomy By Magento Category
Uses a set of rules defined under the Categories Map setting to output category taxonomies.
Products will be matched through the set of rules using their assigned categories. The first category found with the most important category rules below will be considered. The rule importance is given by the Priority rule column, lower values matching first.
Product categories do not necessarily need to have a direct correspondent rule to cover products deeper in the tree. High level categories set here would dictate inheritance for products deeper in the category tree.
The more categories defied here, the granular your taxonomy definition becomes giving google a better and detailed view of your products.
We recommend that you set all rules with priority value. Setting higher Priority values for high level categories, and lower Priority value for deeper categories will make deeper categories will match first, dictating the output value.
It is advise to also set a Replace empty values rule to cover all missed categories from this set, and fill the values with a static default taxonomy or some product attribute holding the taxonomy.

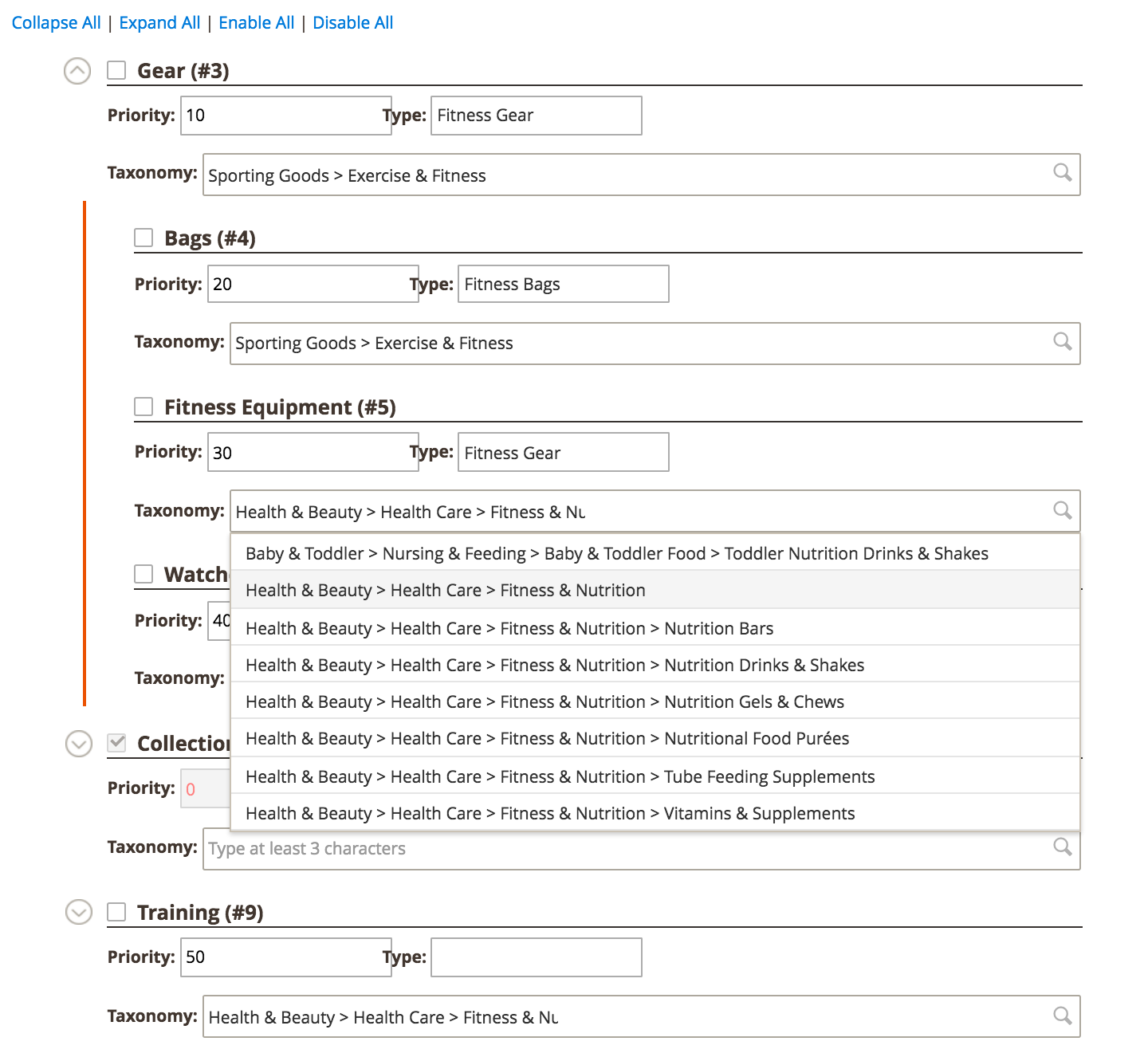

11.3 Categories Map
Type by Magento Category
Similar to Taxonomy By Category directive, the value is been matched against the type value definition according to the category assigned to products and using the Priority set at each category under Categories Map.
Identifier Exists
This directive looks at your feed columns to see if two out of three of the following: brand, mpn, gtin columns have a value. Those columns are been considered as identification information of products, and if at least two of them are missing, the value returned here will be FALSE
Identifier Attribute
It is meant to output an attribute like UPC, EAN or ISBN. When the attribute's value is missing for a configurable or grouped item, will fetch the value from lowest priced associated item, and if empty for a bundle, will go for the highest priced sub-item.
Concatenate Attributes
Allows you to compose a string using attributes of your products or other column values.
Use product attributes in this format: {{attribute_code}}. Attribute codes available for your products can be looked up under Catalog > Attributes > Manage Attributes. To use other column output in concatenation use the same format: {{column_name}}, and make sure the column is defined in the column map, and it is not mapped to another concatenation directive.
This method works like a replace in string function, and looks for the {{}} marker through the string template to replace it with the attribute or column value as specified.
The following placeholders will inherit values as defined in the 'Fetch ... from' settings from Configurable Products and Grouped Products configuration sections:
- {{name}}
- {{description}}
- {{url}}
- {{image}}
If all placeholders bring an empty value when computed, the column output itself will be empty. For example if the template is: "Concatenate of {{name}} and {{size}}"
and {{name}} and {{size}} values in product are empty, the Directive will return empty string. Those values can be caught using Product Filters - Replace.
A special placeholder {{variants}} is available to configure into the concatenation string, this will pull all the configurable attributes of the associated products into the a comma delimited format: "Blue, M, Straight". This placeholder helps to create unique names for associated products and keep the non-configurable products names clean.
For example "{{name}} by {{brand}} - {{variants}}" would result in "3-pack Spoons" for a simple product and "Men Cargo Pants by H&M - Blue, M, Straight" for a configurable variant.
Is Bundle
Outputs TRUE if the item is a bundle item and FALSE otherwise
Promotions ID
This will output the generated ID of promotions feed, if configured under Google Promotions
